Almnar

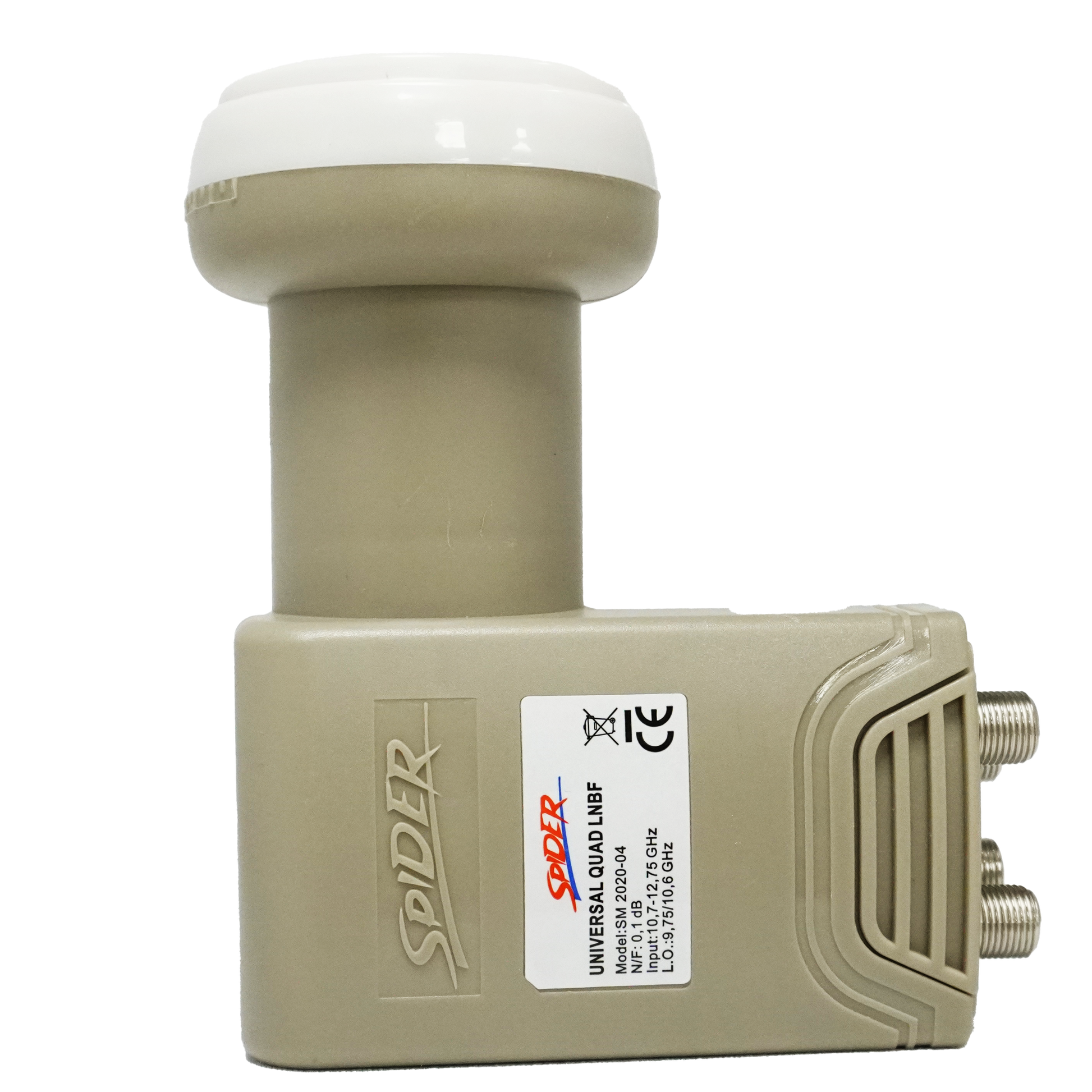

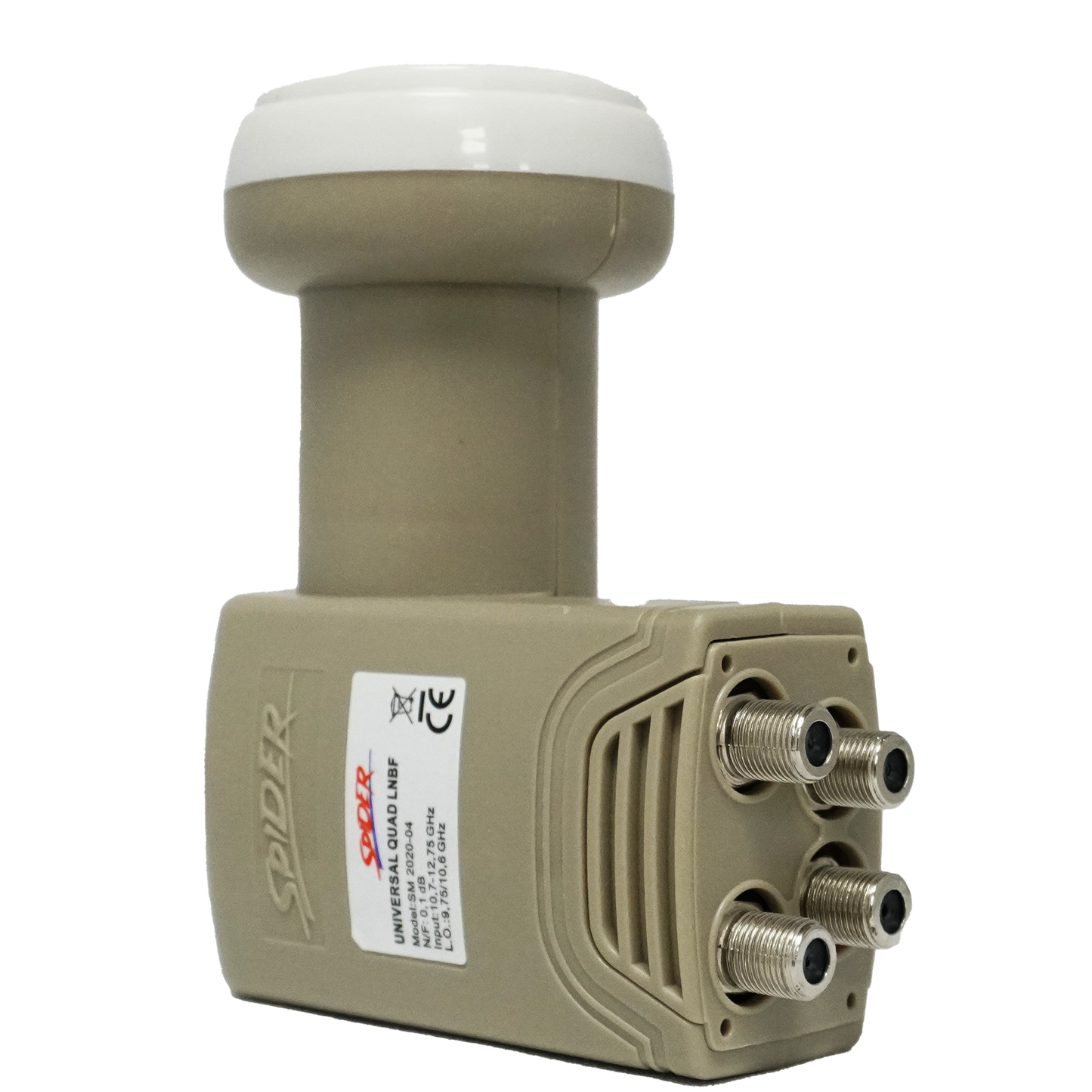

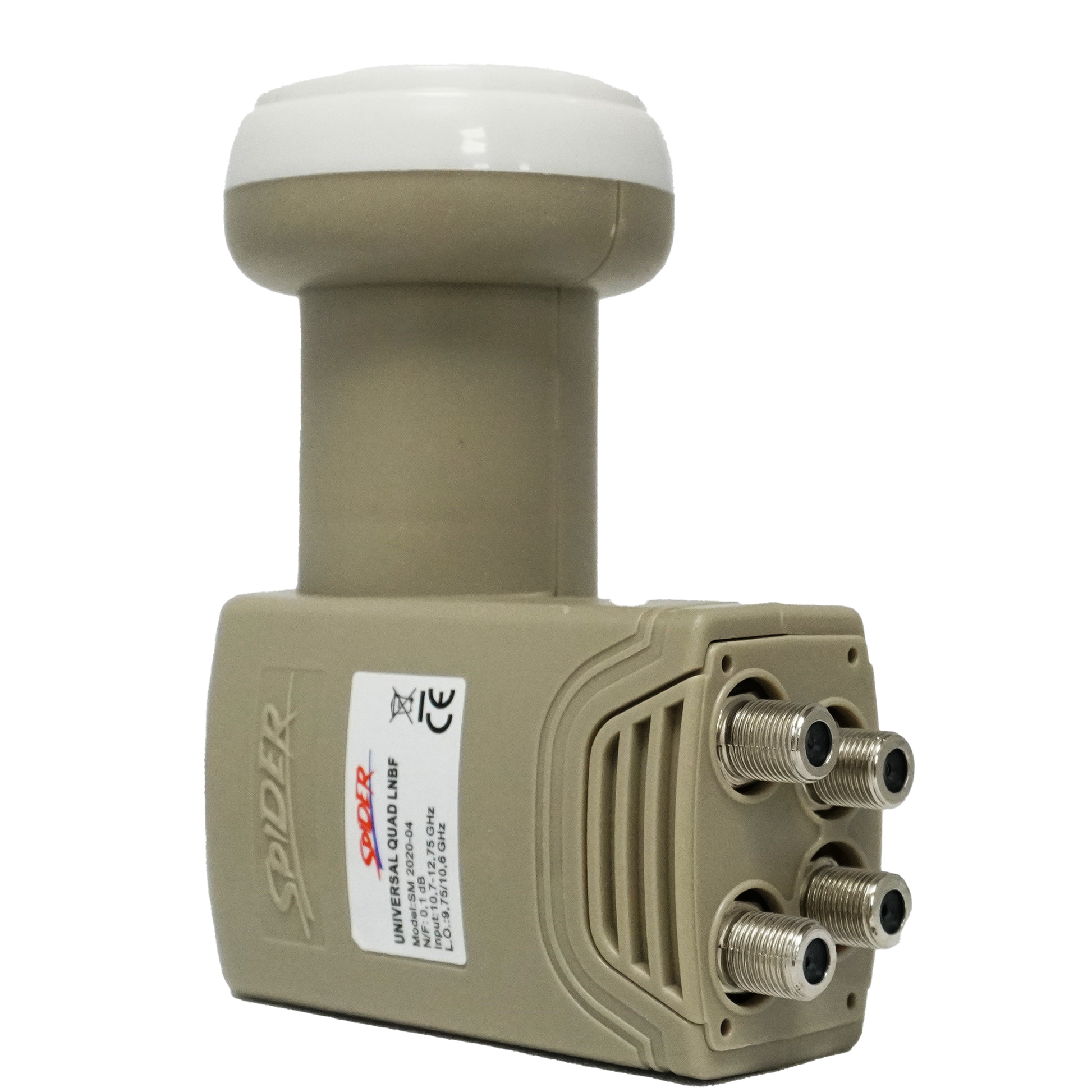

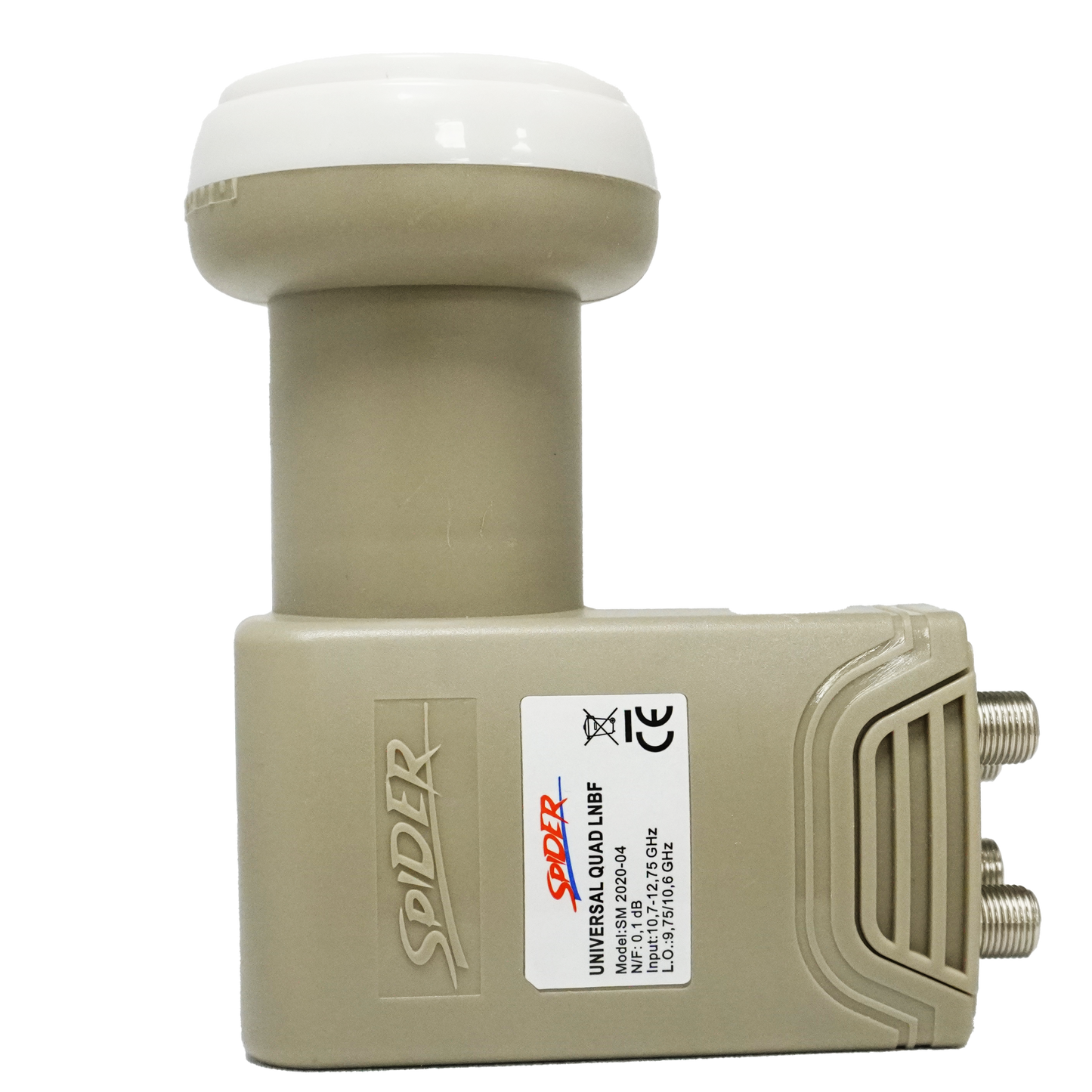

LNB QUAD SPIDER

00000178
  • Input Frequency Range
  • Low Band: 10.70~11.70GHz
  • High Band: 11.70~12.75GHz
  • Output Frequency Range
  • Low Band: 950~1950GHz
  • High Band: 1100~2150GHz
  • Input VSWR
  • 2.5:1
  • Output VSWR
  • 2.5:1
  • L.O. Frequency
  • Low Band 9.75GHz
  • High Band 10.60GHz
  • Conversion Gain
  • 55~60dB (TPY)
  • Gain Flatness
  • ±0.5dB/MHz; ±0.25 dB/IN BAND
  • Output Power
  • +5dB (Min) (at 1dB gain compression)
