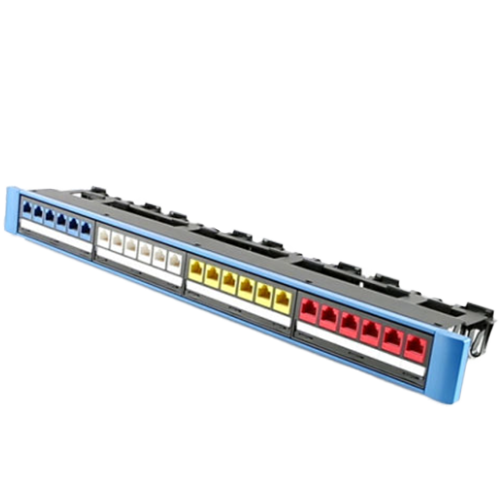

Cat6 UTP 24 port Patch Panel with colorful

Wiring T568A or T568B
Insertion l ife 750 cycles minimum, <0.2dB
Housing High-impact UL94V-0 rated thermoplastic
IDC Blocks Tin lead plated connector accepts
22-26 AWG solid UTP cable
Contact pressure 100 grams min.
Insulation resistance 500 megaohms
Contact resistance 10 milliohms max.
Voltage/current 140 VDC @ 1.5 amps max.
Dielectric withstand 1000 VAC RMS @ 60 Hz min.
Compliance Part 68, FCC Rules
UL Listed
Supports GigE, power over Ethernet
