Almnar

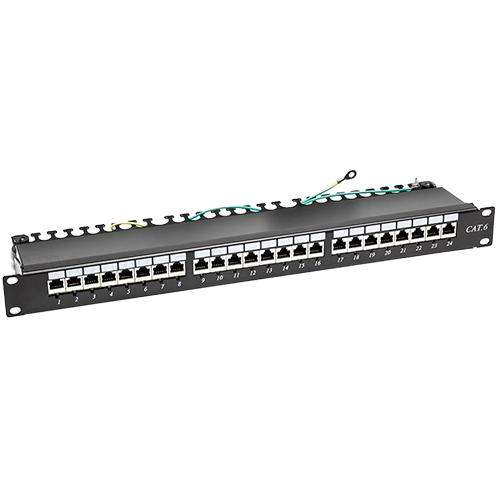

Cat6 FTP 24 port Patch panel

Regular price 210.00 NIS
Regular price Sale price 210.00 NIS
Sale Sold out
Wiring T568A or T568B
Insertion l ife 750 cycles minimum, <0.2dB
Housing High-impact UL94V-0 rated thermoplastic
IDC Blocks Tin lead plated connector accepts
22-26 AWG solid FTP cable
Contact pressure 100 grams min.
Insulation resistance 500 megaohms
Contact resistance 10 milliohms max.
Voltage/current 140 VDC @ 1.5 amps max.
Dielectric withstand 1000 VAC RMS @ 60 Hz min.
Compliance Part 68, FCC Rules
UL Listed
Supports GigE, power over Ethernet
